Overview
Model: ZH-220 Production capacity: 180-220boxs/min Power: 2.2Kw Specifications: 4035×1460×1730mm
Introduction
Application：

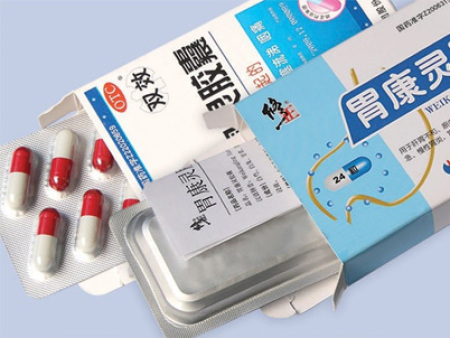

This machine is used to take Alu/PVC medical plate or plastic bottle(vitreous bottle)to filling in paper box automatically.It can perform automatically the whole process of folding and conveying of leaflet,paper box forming,batch number printing and box sealing.The machine can also be linked to work with Alu/PVC packing machine,bottle filling machine and transparent film three dimensional packing machine.
The Technique Data:
Running speed
180-220boxs/min
Size Range of Cardboard Box
≥55×20×12mm
≤220×120×70mm
Size of unfolded leaflet
70-210×80-300mm
Size of folded leaflet
70-210×20-40mm
Quality of Operation Manual
55-70g/㎡
Total Power
2.2Kw
Power
Three phase four wire 380V 50Hz
Air-compress
0.6MPa
Air-consumption
3m³/min
Machine Dimension
4035×1460×1730mm
Weight
3000kg
