Model: DPP-260B Production capacity: 20 cycles/min Power: 6.5kw Specifications: 4400×650×1700mm(L×W×H)
Introduction
Application:

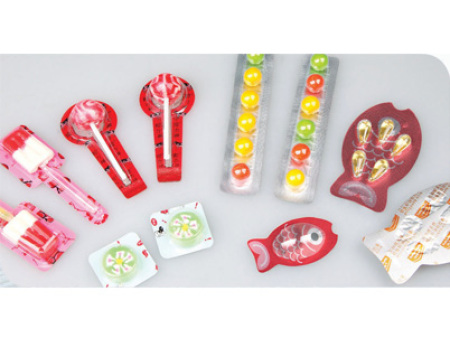

Controlled by PLC,collected light,machine,electricity and air into an organic whole.Widely used in medicine packing,food packing,cosmetics packing,etc.
Machine body can be divided into two parts,easy to enter user's workshop.Machine surface is made of stainless steel,to avoid cross.contamination.
Machine prepare inspection station.According to customer's demand,can rapidly install inspection device,to achieve detect and reject function.
According to customer's demand,machine can connect with pillow packing machine and cartoning machine,save labor cost.

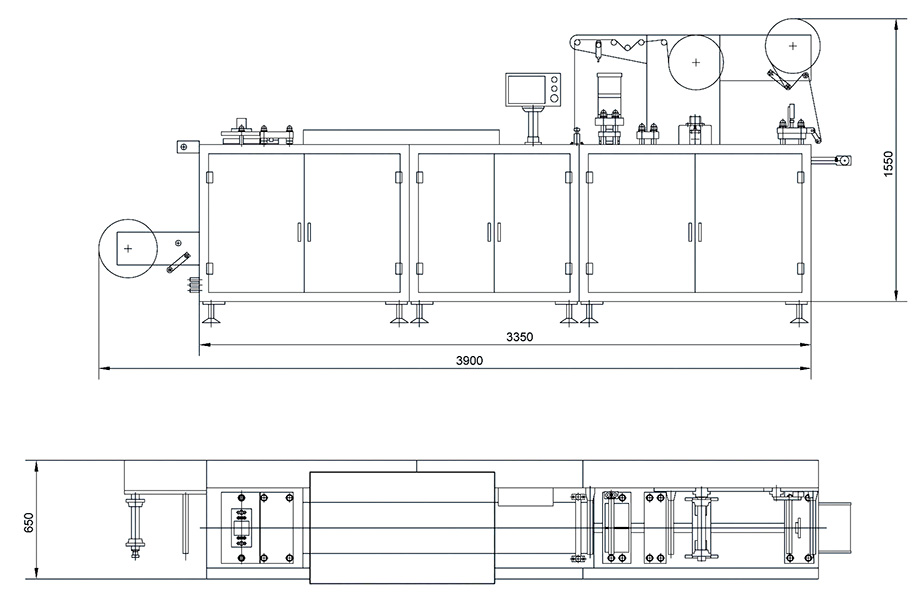

Layout plan：
The Technique Data:
Max.operation speed
up to 20 cycles/min
Format Range
Max.Effective Index width 240×100mm
Max.Depth 18mm
Max.Width of Forming film 260mm
Max.Width of Lidding Material 260mm
Packaging Material
Format Material:PVC,PVDC,PET forming material,etc
Lidding Material:Alu-hard or soft Alu/paper,PP etc Heat-sealable lacquered material
Dimensions
4400×650×1700mm(L×W×H)
Weight
1500kg
Electric power connection
380V 50hz 6.5kw Three-Phase Four-Wires
Compressed Air Pressure
0.5-0.7Pa
Air Consumption
150NL/min
