Overview
Model: DPP-260Y Production capacity: up to 20 cycles/min Power: 9.5kw Specifications: 4400×650×1700mm(L×W×H)
Introduction
Application:
Liquid blister packing machine is suitable for packing the liquid like chocolate,butter,jam.Widely used in Food industry.

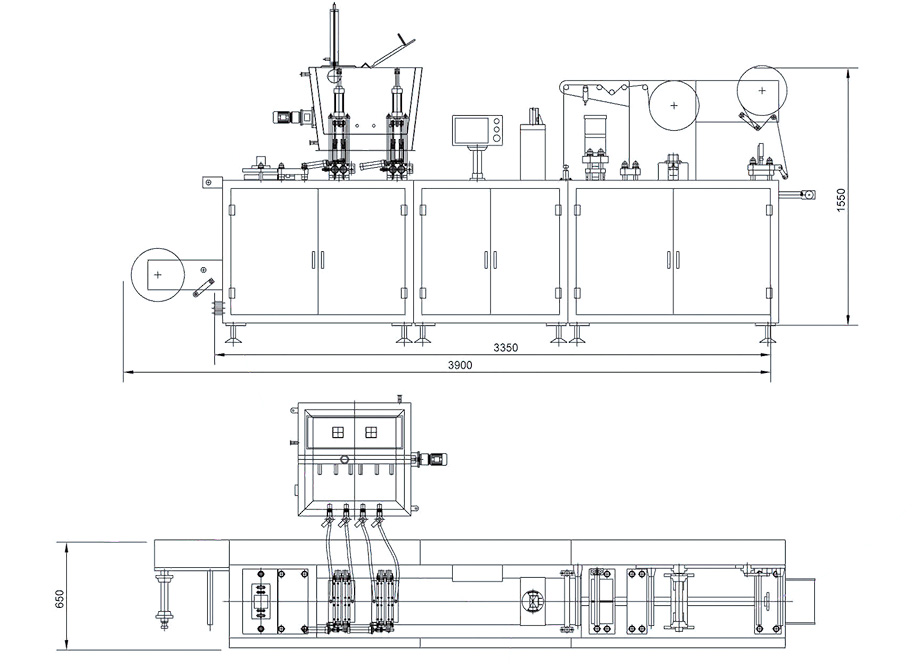

Layout plan：
The Technique Data:
Max.operation speed
up to 20 cycles/min
Format Range
Max.Effective Index width 240×140mm
Max.Depth 24mm
Max.Width of Forming film 260mm
Max.Width of Lidding Material 260mm
Packaging Material
Format Material:PVC,PVDC,PET forming material,etc
Lidding Material:Alu-hard or soft Alu/paper,PP etc Heat-sealable lacquered material
Dimensions
4400×650×1700mm(L×W×H)
Weight
1800kg
Electric power connection
380V 50hz 9.5kw Three-Phase Four-Wires
Compressed Air Pressure
0.5-0.7Pa
Air Consumption
150NL/min
