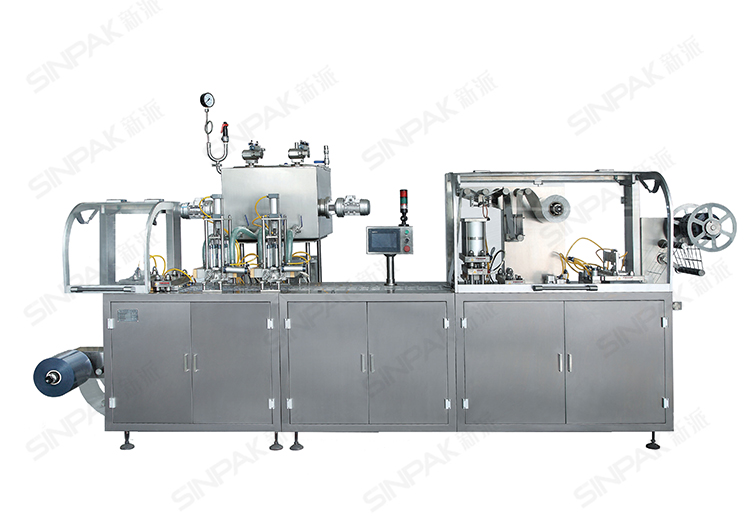

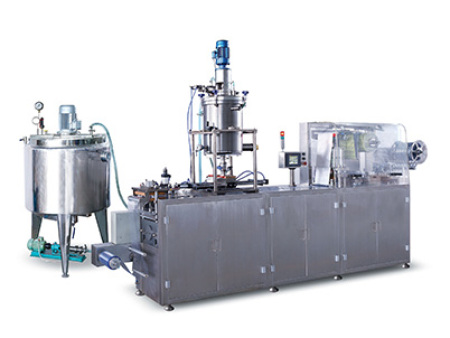

Model: DPP-250Y Production capacity: 25times/min Power: 7.5kw
Introduction
Introduction:
Technical performance:

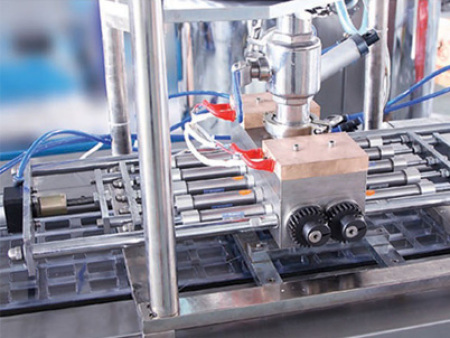

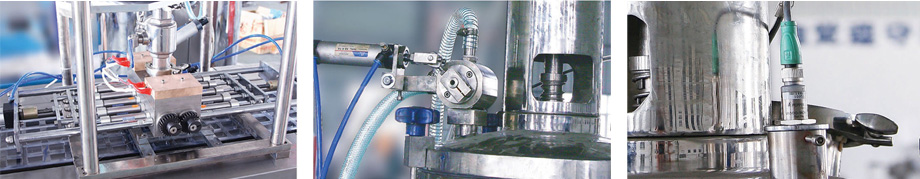

Automatic Liquid Feeder
Alarm system
PLC control system
Stainless steel construction
Application:
LIQUID BLISTER PACKING MACHINE is suitable for packing the liquid like chocolate,butter,jam.Widely used in Food jndustrv.
The Technique Data:
Maximum Machine Speed(cycles/min)
25times/min
Maximum Output
400blisters/min
Forming Materials
PVC/PVDC.PET
Maximum Forming Area
250×150mm
Maximum Forming Depth
24mm
Total Power
7.5kw 380V 50Hz(220V.60HZ)
Air-Compressor
≥0.22m³/min
Net Weight
1800kg
