Model: DPP-260S Production capacity: up to 20 cycles/min Power: 7.5kw Specifications: 4400×650×1700mm(L×W×H)
Introduction
Application:
This DPP-260S type machine is collected machine,electricity and air into an organic whole,automatic control,frequency control.Controlled by the PLC,machine is heating,pressure molding,cutting the sheet to be finished product, achieving forming and sealing materials' double eye mark registration.

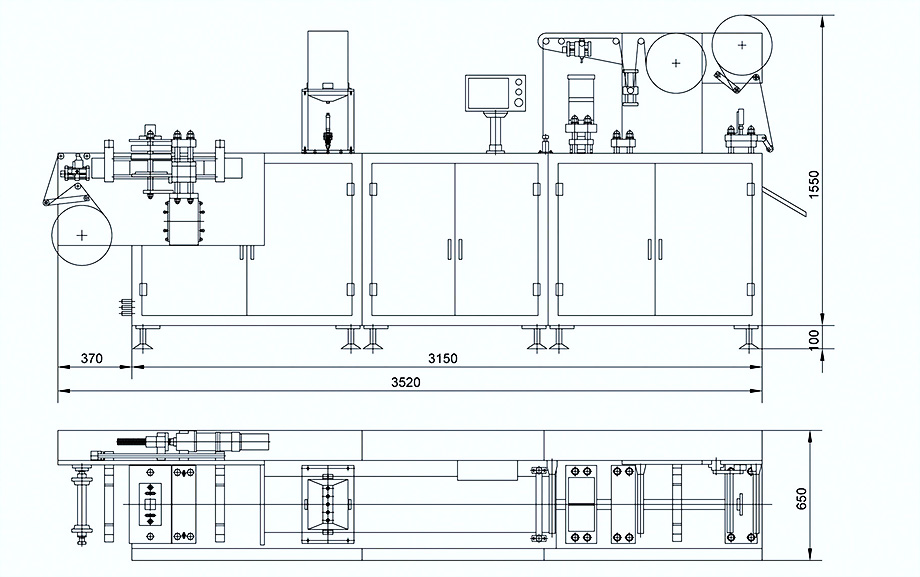

Layout plan：
The Technique Data:
Max.operation speed
up to 20 cycles/min
Format Range
Max.Effective Index width 240×140mm
Max.Depth 28mm
Max.Width of Forming film 260mm
Max.Width of Lidding Material 260mm
Packaging Material
Format Material:PVC,PVDC,PET forming material,etc
Lidding Material:Alu-hard or soft Alu/paper,PP etc Heat-sealable lacquered material
Dimensions
4400×650×1700mm(L×W×H)
Weight
1600kg
Electric power connection
380V 50hz 7.5kw Three-Phase Four-Wires
Compressed Air Pressure
0.5-0.7Pa
Air Consumption
150NL/min
