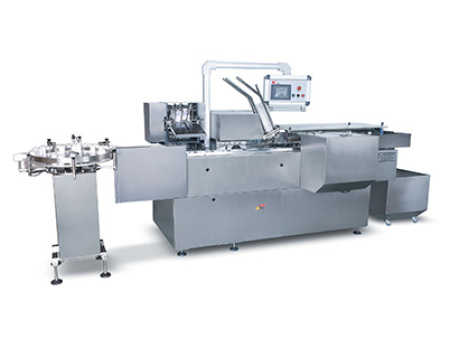

ZHW-120 Full-automatic Cartoning Machine
Overview
Model: ZHB-120 Production capacity: 80-100cartons/min Power: 1.5Kw Specifications: 4300×2000×1700mm
Introduction
Introduction:
Application:
This machine is suitable for carton packing bottles，ointment and other relatedsimilar.
PLC control system:
Current GMP compliant design
Easy and fast size changeover
Secure inserting of product and leaflet
Safety and controls of automatic cartooning
Various coding，such as emboss
Carton rejection by mission leaflet．
The Technique Data:
Electric power
AC380V,50HZ,1.5Kw
Overall Dimensions
4300×2000×1700mm
Output
80-100cartons/min
Pack material
Carton quality:250-300g/㎡
Max size:180×90×60mm
Min size:80×30×15mm
Leaflet
Paper quality:55-65g/㎡
Max size:170×200mm
Min size:110×110mm
Air consumption
20m³/min
Weight
1400Kg
