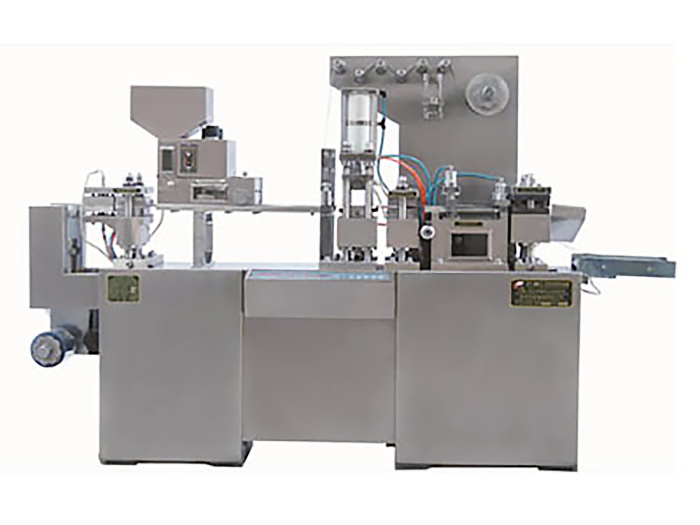

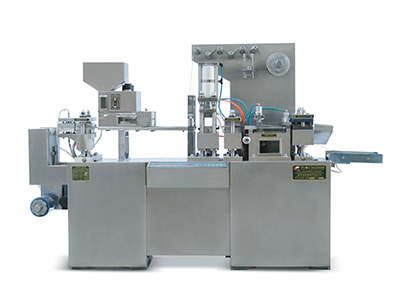

DPP-140 Blister Packing Machine

	Online More Information
Share：

Previous： DHC-250P/350P Automatic Blister Packing Production Line

Next： DLL-160 High Speed Automatic al-al Packing Machine

Keywords： Blister Packing Machine

Model: DPP-140
Production capacity: 2400-7200plates/hour
Power: 4kw
Specifications: 2200×750×1650mm

Blister Packing Machine

The Technique Data:

Blanking Frequency	20-40times/min
Blanking Plate	2-3plates/hour
Adjustable Scope Travel	30-110mm
Packing Efficiency	2400-7200plates/hour
Max Forming Area and Depth	135×100×12mm
Specifications of Packing Material	Medical PVC 140×0.25(0.15-0.5)mm
Specifications of Packing Material	PTP 140×0.02mm
Total Power of Electric Source	Single-phase 220V 50Hz 4kw
Air-compressor	≥0.15m³/min(Self-prepared)
Pressure	0.6Mpa
Dimensions	2200×750×1650mm
Weight	700kg
