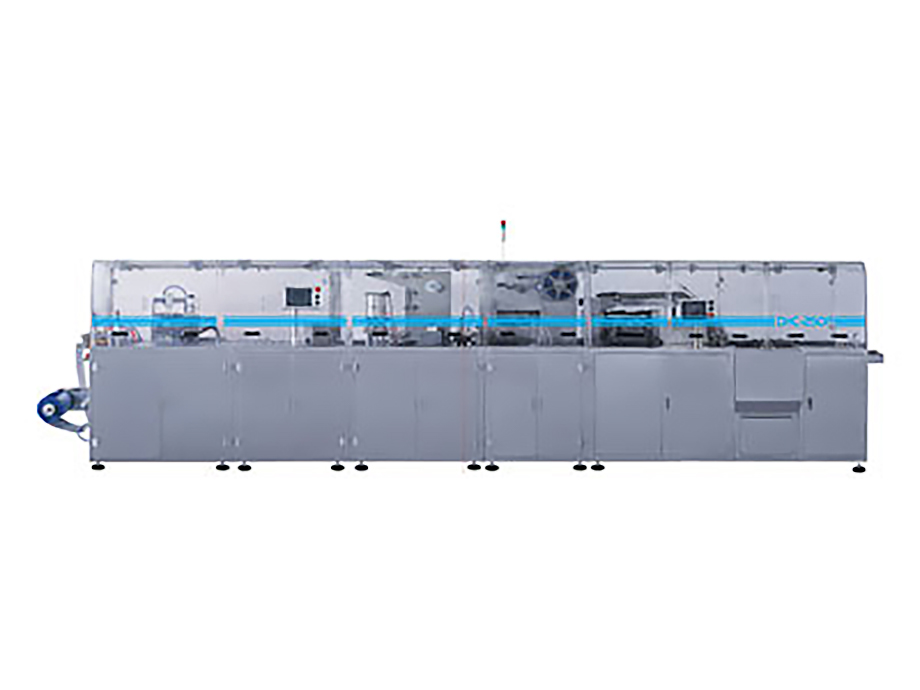

DHC-250P/350P Automatic Blister Packing Production Line

	Online More Information
Share：

Previous： DHC-260G High Speed Product Line of Medicine Packing

Next： DPP-140 Blister Packing Machine

Keywords： Automatic Blister Packing Produc Blister Packaging Solutions Pharmaceutical Packaging Equipme

Overview

Model: DHC-250P/350P
Production capacity: 200blisters/min and 100 cartons/min
Power: 7kw

Introduction

Automatic Blister Packing Produc

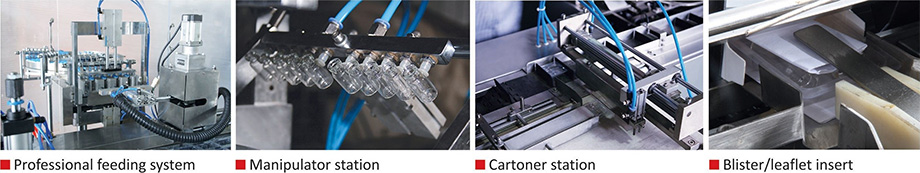

PLC control system

Current GMP compliant design

Easy and fast size changeover

Secure inserting of product and leaflet

Safety and controls of automatic cartoning

Automatic Blister Packing Produc

Application：

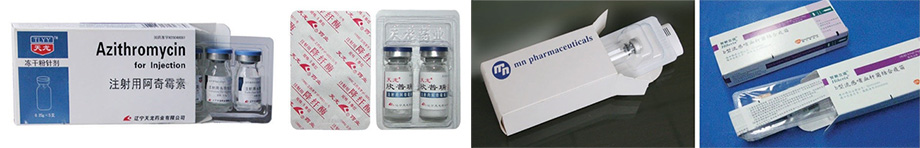

Production Line is collected light,machine,electricity and air into an organic whole,control by PLC system,suitable for packing ampoule,injection and so on.It avoids cross contamination of medicine in packing process and make the packing process totally confirm to standard of GMP.

Automatic Blister Packing Produc

The Technique Data:

Max Speed	200blisters/min and 100 cartons/min
Air-Compress	≥0.6MPa
Air-Compress	≥0.7m³/min(Self-prepared)
Total Power	7kw 380V 50Hz(220V 60Hz)
Weight	2900kg
