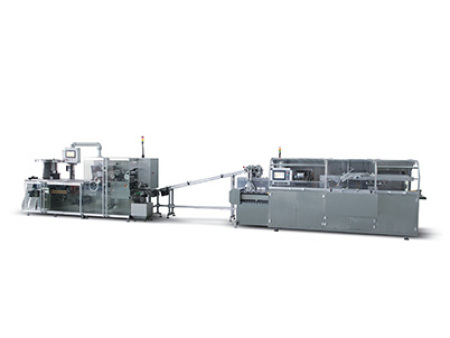

DHC-260G High Speed Product Line of Medicine Packing

	Online More Information
Share：

Previous： DHC-260C Product Line of Medicine Packing

Next： DHC-250P/350P Automatic Blister Packing Production Line

Keywords： Medicine Packing Machine High Speed Product Line of Medic High Speed Product Line

Overview

Model: DHC-260G
Production capacity: 300blisters/min and 150 cartons/min
Power: 20kw

Introduction

PLC control system

Current GMP compliant design

CE certificate

Medicine Packing Machine

Application：

Controlled by the PLC,the production line is collected light,machine,electricity and air into an organic whole to finish aluminium mold froth cover packing and automatically pucker medicine manual and medicine board paper carton packing,full-automatically running in succession medicine's package.This products has advanced self-examining function,can identify broken froth cover,shortage of medicine,medincin board and manual etc,and empty ca rton examing memory.

It can eliminate the waster at 100% level.

Medicine Packing Machine

The Technique Data:

Max Speed	300blisters/min and 150 cartons/min
Air-Compress	≥0.6MPa
Air-Compress	≥0.7m³/min(Self-prepared)
Total Power	20kw 380V 50Hz
Weight	4200kg
